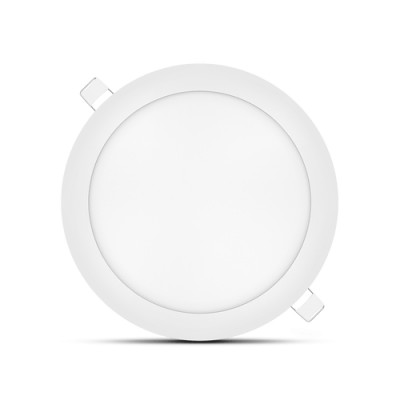

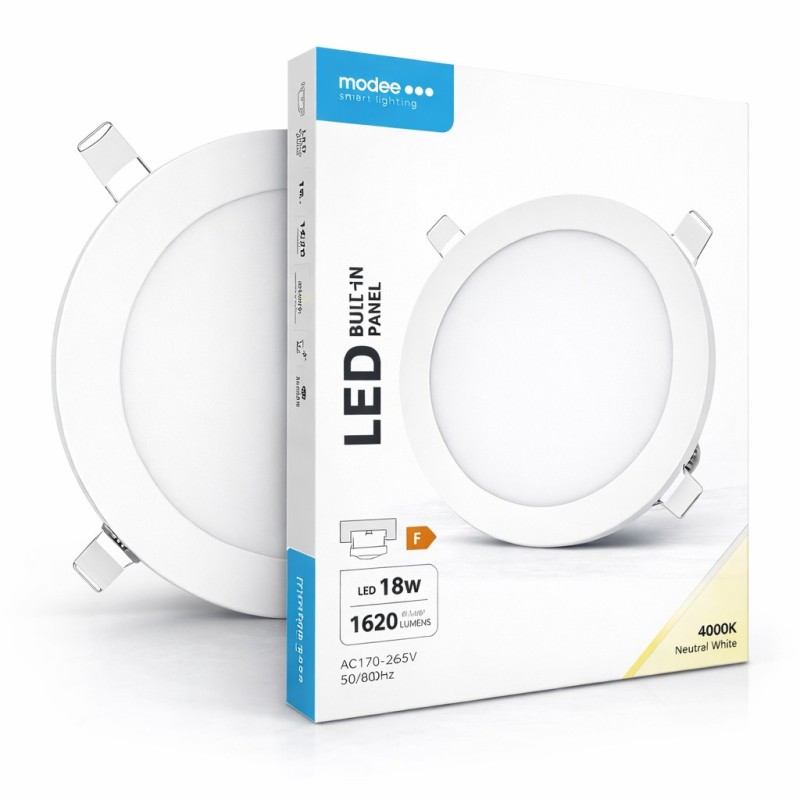

Round recessed LED panel Ø220 mm 18W MODEE A2 – Premium quality, 1620 lm, Neutral white 4000K

Discover the round recessed LED panel MODEE A2-Series 18W, a modern, energy-efficient and high-performance LED lighting solution, specially designed for suspended ceilings and demanding professional or residential installations. Thanks to its optimized design and excellent luminous output, this LED panel is an ideal replacement for traditional 90W panels, while significantly reducing energy consumption.

High luminous performance and energy efficiency
With a power of only 18 W, this round LED panel delivers a luminous flux of 1,620 lumens, providing an excellent luminous efficiency of 90 lm/W. It ensures uniform lighting, comfortable for the eyes, with a 120° beam angle, perfectly suited for offices, corridors, retail spaces or residential areas.
The 4000 K colour temperature (neutral white) guarantees a balanced light, ideal for working environments and living spaces. A 6000 K (cool white) version is also available.

Durable design and optimal heat dissipation
The panel is made of alu-plastic, combining an internal aluminium structure for efficient heat dissipation with a lightweight and robust plastic housing. This design preserves brightness over time and ensures a 30,000-hour lifespan, reducing maintenance costs.
Its colour rendering index >80 ensures natural and accurate colour reproduction.

Simple and quick installation
Thanks to its side spring clips, installation is fast and secure. This recessed LED panel is perfectly suited for suspended ceilings.
With an outer diameter of 220 mm and a cut-out diameter of 205 mm, it easily fits into existing installations. Its slim thickness of 14 mm allows for a discreet and elegant installation.

Electrical safety and network compatibility
Operating on AC 175-265 V, this LED panel is designed to withstand voltage fluctuations, ensuring stable and reliable operation. Its IP20 protection rating protects against medium-sized solid objects, for indoor use.

Main technical specifications
Rated power 18 W
Luminous flux 1,620 lm
Luminous efficiency 90 lm/W
Colour temperature 4000 K – neutral white
Colour rendering index CRI >80
Beam angle 120°
Supply voltage AC 175-265 V
Frequency 50/60 Hz
Power factor 0.5
Lifetime 30,000 hours
Protection rating IP20
Energy class F
Technology SMD LED
Non-dimmable

Dimensions and weight
Outer diameter 220 mm
Cut-out diameter 205 mm
Height 14 mm
Weight 215 g

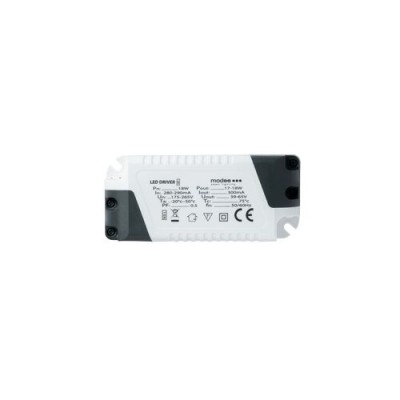

Driver specifications
Rated power 18 W
Input current 280-290 mA
Output current 300 mA
Output voltage 39-65 V
Operating ambient temperature -20 °C to +90 °C
Maximum internal temperature 75 °C

Warranty and logistics
This MODEE A2-Series LED panel is covered by a 2-year manufacturer’s warranty, ensuring quality and reliability. Its compact format and low weight make storage and transport easy, whether for single sales or bulk orders.

A round recessed 18W LED panel combining performance, durability and easy installation, ideal for all professional or domestic indoor lighting projects.
